Dell EMC PowerEdge T140 Server is the practical, entry-level 1-socket mini-tower server for growing businesses and organizations. The Dell EMC PowerEdge T140 Server is easy to use and helps keep your data safe to grow your business. Now with faster 6 core Intel® Xeon® processors, it helps run applications faster and support for full-feature remote management (iDRAC9). The Dell EMC PowerEdge T140 Server is also excellent for Remote Offices / Branch Offices (ROBO) of large institutions. Enhanced by quiet operation and compact mini-tower dimensions, the Dell EMC PowerEdge T140 Server 1-socket tower server delivers the performance, efficiency, and expandability needed for success.
Dell EMC PowerEdge T140 Server
Ask for more on Whatsapp
- 3.5″” Chassis with up to 4 Cabled Hard Drives
- Intel Xeon E-2224 3.4GHz, 12M cache, 4C/4T, turbo (71W)
- 16GB UDIMM, 2666MT/s, Single Rank
- 1 x 1TB 7.2K RPM SATA 6Gbps 3.5”Cabled Drive
- DVD+/-RW,SATA,Int
- Lan On motherboard – 2xGigabit Ethernet Base-T
- Embd SATA Software RAID
- 16 Months ProSupport Plus with NBD
Dell EMC PowerEdge T140 Server
Front View
| 1. | Power button | 2. | System health and ID indicator |
| 3. | USB 3.0 port | 4. | iDRAC direct micro USB port |
| 5. | Optical drive (optional) |
Dell PowerEdge T140 Server Rear View
| 1. | Security Cable Lock | 2. | iDRAC MAC address and iDRAC secure password label |
| 3. | Service Tag, Express Service Code, QRL label | 4. | . OpenManage Mobile (OMM) label |
| 5. | PCIe expansion card slots (4) | 6. | USB 2.0 port (4) |
| 7. | System identification button | 8. | NIC port (Gb 2) |
| 9. | USB 3.0 port (2) | 10. | NIC port (Gb 1) |
| 11. | iDRAC dedicated NIC port | 12. | VGA port |
| 13. | Serial port | 14. | Power supply unit |
| 15. | PSU Built-in Self Test (BIST) LED | 16. | PSU Built-in Self Test (BIST) Button |

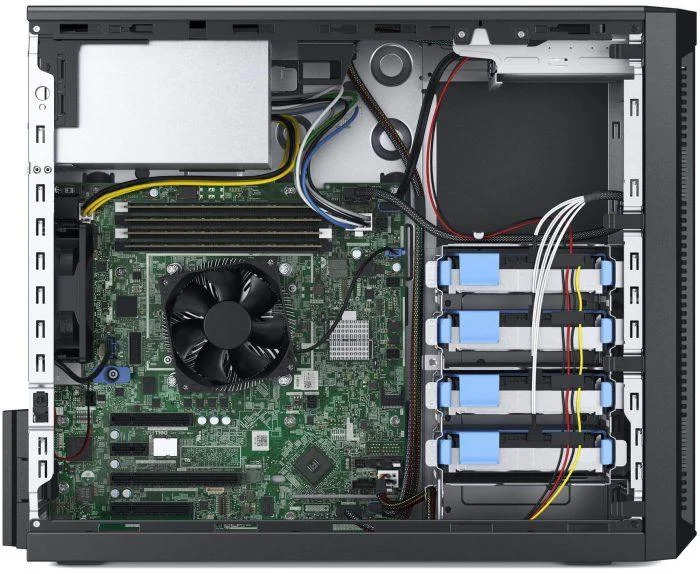

Internal View
| 1. | Cabled Power Supply Unit (PSU) | 2. | Optical drive |
| 3. | Cabled drives (4) | 4. | System board |
| 5. | Expansion card retention latch | 6. | PCIe expansion card slots (4) |
| 7. | Intrusion switch | 8. | fan |
| 9. | Memory module sockets |
SPECIFICATION
| General | |
|---|---|
| Type: | Server |
| Product Form Factor: | Mini Tower |
| Processors / Chipset | |
| Processor: | • Intel® Xeon® processor E-2100 and E-2200 product family • Intel® Core™ i3 • Intel® Pentium® • Intel® Celeron |
| Chipset Type: | Intel® C246 Chipset |
| Cache Memory | |
| Cache: | • 2.0 MB per core • 8 MB or 12 MB |
| Memory: | |
| DIMM types: | DDR4 DIMMs |
| Max Frequency: | 2600MT/s |
| DIMM Slots: | 4 |
| Min/Max RAM: | 8GB/64GB |
| Hard Drive: | |
| Hard Drive: | Up to 4 x 3.5” cabled HDDs |
| Storage Controller | |
| Boot Optimized Storage Subsystem: | 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only) |
| RAID: | SW and HW RAID, Internal PERC and Add-in Card options: S140, H330+, H730P+ |
| Dimensions And Weight | |
| Width: | 175 mm |
| Depth: | 455 mm |
| Height: | 360 mm |
| Weight: | 12 kg |
| Graphics Controller | |
| Graphics Processor: | Integrated Matrox G200 with iDRAC9 |
| I/O & Ports | |
| Network option: | 2 x 1GbE LOM |
| PCIe: | • 1×8 Gen3 (x16 connector) FH/HL • 1×8 Gen3 (x8 connector) FH/HL • 1×4 Gen3 (x8 connector) FH/HL • 1×1 Gen3 (x1 connector) FH/HL |
| USB: | USB 3.0 |
| Power | |
| Power supply: | Single Cabled 365W PSU |
